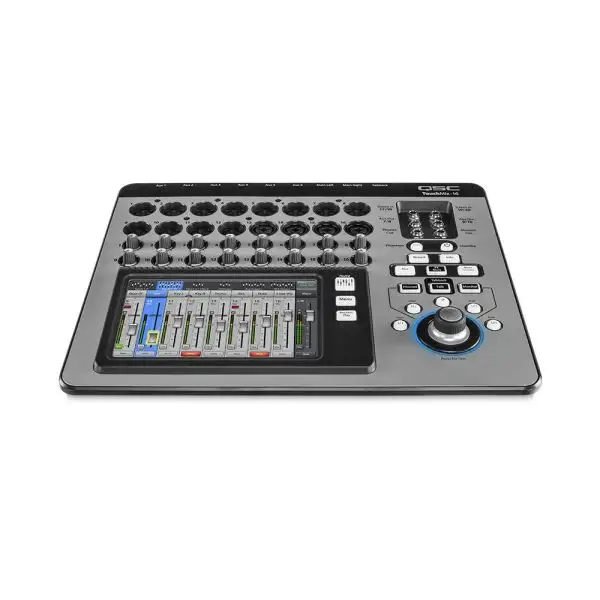

The QSC TouchMix 16 compact digital mixer is designed for musicians, production professionals and live performance venues that need the power and capability of a large โconcertโ mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.
Easy to Use:
- Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications
- Wizards assist with input gain adjustment and effects selection and routing
- On board, multi-language Info system for instant access to the user manual in Chinese Mandarin, English, French, German, Russian and Spanish
- Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation
Superb Sound Quality:
- Class-A microphone pre-amps
- 32-bit floating point processing
- 24-bit AD & DA convertors
Fully-Featured Input Channels:
- Four-band full parametric EQ
- Variable high-cut and low-cut filters
- Gate
- Compressor (with de-esser)
- Gate and compressor assignable Pre or Post EQ
- User selectable auxiliary pick-off points
Inputs:
- 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
- Dedicated talkback mic input
- Stereo Main L/R outputs (XLR)
Outputs:
- 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes
- Mono auxiliaries may be linked for stereo use
- The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly
- Multiple ways to control aux mixes
- Mix on faders
- Send from channels
- Aux overview of all aux mixes
- Auxiliary mixes may be assigned for Main L/R output for use as sub-groups
Stereo DSP Effects:
- Two types of reverb
- Mono delay
- Stereo delay
- Chorus
- Pitch-change
- One Pitch Correct processor โ assignable to any input channel
Remote Control:
- Complete mixer remote control via free iOSยฎ app for iPad, iPhone, iPod Touch
- Monitor control via iPhone/iPod Touch App
- Multiple Wi-Fi connectivity options
- Individual devices may be given permissions to access one or more functions
- Support for MIDI-over-USB foot switches
Features:
- Eight DCA and eight mute groups
- Assign / Un-assign Input to Main Mix
- Programmable User-Buttons
- Save your own channel presets and complete mixer scenes to internal memory or USB device
- Capturing live performance to multi-track has never been easier – record 14 tracks (all inputs plus a stereo mix) directly to USB hard-drive – mix down on TouchMix or import into your favorite DAW
- Security Lockout Modes
- USB Wi-Fi interface and carrying case are included
